新しく導入したクラスタでは ONTAP System Manager でアグリゲートをプロビジョニングできません
環境
- ONTAP System Manager 9.8P9以前
- ONTAP System Manager 9.9.1P2以前
- ONTAP 9.8P9以前
- ONTAP 9.9.1P2以前
問題
- ONTAP System Managerを使用してノード1またはノード2からアグリゲートをプロビジョニングできません。

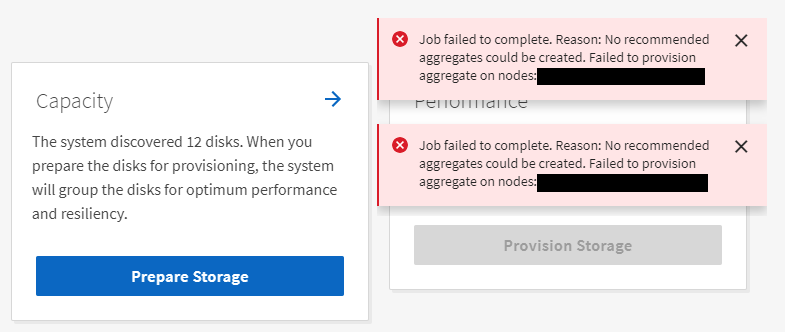

- ストレージの準備 が次のエラーで失敗します。
Job failed to complete. Reason: No recommended aggregates could be created. Failed to provision aggregate on nodes: <NODE>.
- 手動プロビジョニングは、ONTAP CLIを使用して実行できます。
Cluster-1::*> aggr create -aggregate Cluster_1_01_SAS_1 -encrypt-with-aggr-key true -disktype SAS -raidtype raid_dp -maxraidsize 11 -diskrpm 10000 -pool Pool0 -diskcount 11 -chksumstyle bloc
Info: The layout for aggregate "Cluster_1_01_SAS_1" on node "Cluster-1-01" would be:
First Plex
RAID Group rg0, 11 disks (block checksum, raid_dp)
Usable Physical
Position Disk Type Size Size
---------- ------------------------- ---------- -------- --------
shared 1.0.21 SAS - -
shared 1.0.5 SAS - -
shared 1.0.7 SAS 1.61TB 1.61TB
shared 1.0.9 SAS 1.61TB 1.61TB
shared 1.0.11 SAS 1.61TB 1.61TB
shared 1.0.13 SAS 1.61TB 1.61TB
shared 1.0.15 SAS 1.61TB 1.61TB
shared 1.0.17 SAS 1.61TB 1.61TB
shared 1.0.19 SAS 1.61TB 1.61TB
shared 1.0.3 SAS 1.61TB 1.61TB
shared 1.0.1 SAS 1.61TB 1.61TB
Aggregate capacity available for volume use would be 13.05TB.
Do you want to continue? {y|n}: y
[Job 1020] Job succeeded: DONE
- ONTAP CLIを使用した自動プロビジョニングが失敗する。
Cluster-1::> aggr auto-provision -verbose Per node summary of new aggregates to create, discovered spares, and also remaining spare disks and partitions after aggregate creation: New Total New -Discovered Spare- -Remaining Spare- Node Aggrs Usable Size Disks Partitions Disks Partitions ------------------ ----- ------------ ------ ----------- ------ ---------- Cluster-1-01 1 13.05TB 0 12 0 1 Cluster-1-02 1 13.05TB 0 12 0 1 ------------------ ----- ------------ ------ ----------- ------ ---------- Total: 2 26.10TB 0 24 0 2
Cluster-1::> storage aggregate show-auto-provision-progress Current Target Aggregate Usable Size Usable Size Provisioning Progress ---------------------------- ------------ ------------ ----------------------- Cluster_1_01_SAS_1 0B 13.05TB Failed Cluster_1_02_SAS_1 0B 13.05TB Failed Error: Provisioning "Cluster_1_01_SAS_1" failed. Reason: [Job 452] Job failed: Failed to create aggregate "Cluster_1_01_SAS_1" on "Cluster-1-01". Reason: There are not enough spare disks with matching RPM. 11 disks needed from one pool, but not enough matching disks of the requested size are available in either pool. Provisioning "Cluster_1_02_SAS_1" failed. Reason: [Job 453] Job failed: Failed to create aggregate "Cluster_1_02_SAS_1" on "Cluster-1-02". Reason: There are not enough spare disks with matching RPM. 11 disks needed from one pool, but not enough matching disks of the requested size are available in either pool.
